Nadine TC Air

Experience the epitome of modern heating with the Palazzetti Nadine TC

Experience the epitome of modern heating with the Palazzetti NADINE TC 13. This sealed pellet stove draws combustion air directly from outdoors, ensuring optimal indoor air quality while its steel structure and ceramic cladding exude sophistication. Designed with convenience in mind, the NADINE TC features two doors – one design door for admiring the flames and one for easy maintenance access.

The self-balancing Balanced Door system ensures effortless operation, complemented by a variable-speed fan with Zero Speed Fan technology for customizable heat distribution and acoustic comfort. Stay in control with the digital touch screen, programmable for daily or weekly operation schedules. Designed for seamless integration with Palazzetti’s Connection Box, this stove boasts the revolutionary T3 technology with four increased-diameter smoke pipes for high efficiency and simplified cleaning. The Complete Burning System ensures total combustion with minimal ash production, further enhanced by the exclusive Self Cleaning System’s brazier self-cleaning capabilities. Maintenance is a breeze thanks to the large ash drawer and Speedy Clean system, while the Quick Start system enables rapid ignition and the Star Valve pellet-feed system delivers reliable fuel delivery.

Click below to find your nearest stockist and for pricing

Colour Range

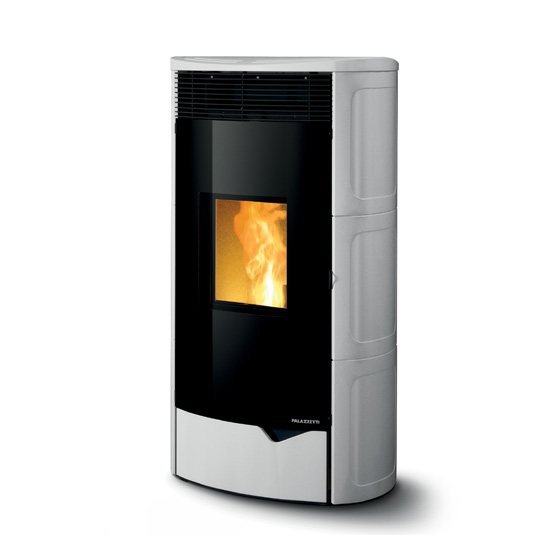

White

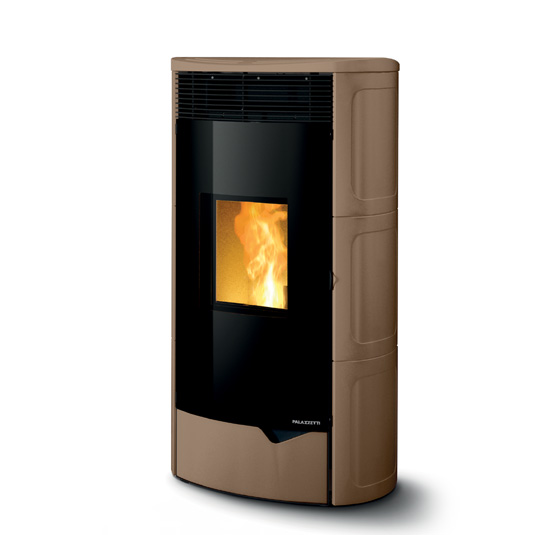

Caffellatte

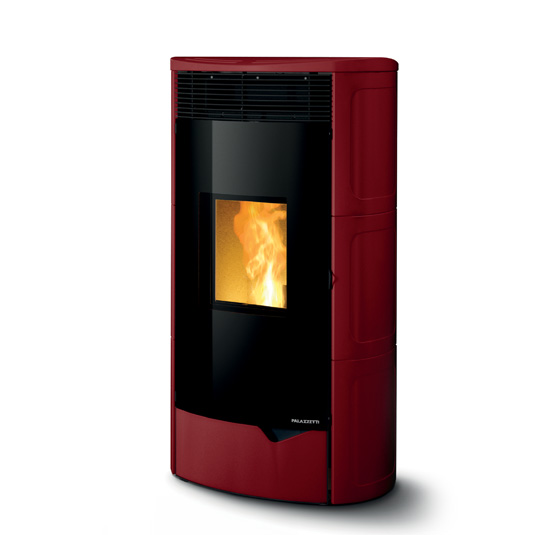

Burgundy

More In Depth Info

Specifications and standard fittings:

  • Sealed stove, can draw its combustion air directly from outdoors
  • Steel structure with ceramic cladding
  • Two doors, one design door and one for maintenance
  • Balanced Door with self-balancing system
  • Variable-speed fan with Zero Speed Fan technology (the fan can be switched off to increase acoustic comfort and favour natural heat diffusion)
  • Digital, touch screen control panel
  • Operating hours can be programmed on a daily and weekly basis
  • Designed for our Connection Box
  • T3 technology with 4 smoke pipes of increased diameter with high efficiency and simplified cleaning
  • Complete Burning System: total combustion stove with minimum ash production
  • Self Cleaning System: exclusive brazier self-cleaning system
  • Large ash drawer and Speedy Clean system
  • Quick Start system (reduces ignition time)
  • Star Valve pellet-feed system

Technical Details

 Pellet Burning - Nadine 9kW
 Nominal heat output  9.0kW
 Efficiency  91.2%
 Maximum burn rate  25h
 Fuel hopper capacity  18kg
 Hourly fuel consumption  0.73 - 2.05 kg/h
 Flue gas outlet  ø 8 cm
 Energy Rating  A+



 Pellet Burning - Nadine 13kW
 Nominal heat output  13.2 kW
 Efficiency  90.1%
 Maximum burn rate  25h
 Fuel hopper capacity  18kg
 Hourly fuel consumption  0.73 - 3.04 kg/h
 Flue gas outlet  ø 8 cm
 Energy Rating  A+

Dimensions

Size
62 x 59 x 125 cm

Weight
190 kg

Clearance
Front: 80cm
Back: 5cm
Side: 20cm
Top: 75cm
